● Steel structure
● heavy fabrication
● pressure vessel applications
AWS A5.28 ER80S-G
GB/T 8110: G55A3M21ZSM3CT
Literature
Literature
● Excellent weldability - Stable arc, low spatter, low clean up, suitable for both short-circuit transfer and high current spray transfer.
● Superb feedability - Unique manufacturing technology results in a clean wire surface, smooth copper coating layer and an even
amount of feeding lubricant. These advantages ensure lower friction during wire feeding and better electrical conductivity
|
Products |
|
C |
Mn |
Si |
P |
S |
Ni |
Cr |
Mo |
|
MERIT® JM®-80 |
AWS Requirements |
--- |
--- |
--- |
--- |
--- |
--- |
≥0.30 |
--- |
|
Typical value |
0.081 |
1.56 |
0.67 |
0.018 |
0.008 |
0.011 |
0.33 |
0.008 |
|
Products |
Condition |
Yield Strength |
Tensile Strength |
Elongation |
CVN Impact value |
|
|
J |
°C |
|||||
|
MERIT® JM®-80 As-welded 80%Ar+20%CO2 |
AWS Requirements |
--- |
550min |
--- |
--- |
--- |
|
Typical value |
500 |
600 |
25 |
81 |
-30 |
|
0.8mm, 1.0mm, 1.2mm, 1.4mm, 1.6mm
STANDARD PACKAGING

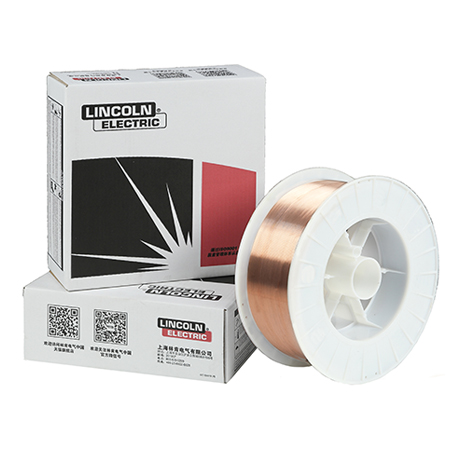

Plastic Spool Package: 15KG
Drum Packages: 150KG, 200KG, 300KG, 350KG
Please contact with your local LINCOLN ELECTRIC® sales office for alternative types of packaging.
|
Diameter Shielding Gas |
CTWD (mm) |
Wire Feed Speed (m/min) |
Voltage (volts) |
Approx. Current (amps) |
Melt-off Rate (kg/hr) |
|
1.0mm |
12-19 |
2.5 3.8 6.4 |
17 18 22 |
80 120 175 |
0.7 1.2 1.8 |
|
1.0mm |
12-19 |
9.5 12.7 15.2 |
23 29 30 |
195 230 275 |
2.7 3.6 4.4 |
|
1.2mm |
12-19 |
3.2 3.8 5.1 |
19 20 21 |
145 165 200 |
1.5 1.8 2.4 |
|
1.0mm |
12-19 |
8.9 12.1 12.7 |
27 30 30 |
285 335 340 |
4.2 5.7 6.0 |
