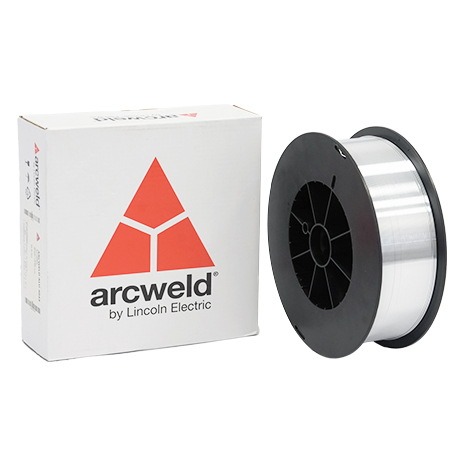

ARCWELD ALU 5356
Product Application
● Automotive bumpers and supports
● Structural frames in the shipbuilding industry
● Transportation vehicle
● Bicycle frames
Welding Position
All, except vertical down
Standard
AWS A5.10: ER5356
ISO 18273:S AI 5356(AIMg5Cr(A))
Literature
Literature
literature
Consumables Detail
ARCWELD ALU 5356 is the most popular MIG aluminum alloy welding wire. It contains 5% magnesium, very commonly used for higher strength welding of 5xxx and 6xxx base materials.
|
|
Si |
Fe |
Cu |
Mn |
Mg |
Zn |
Ti |
Cr |
Be |
Al |
|
Requirements-AWS ER5356 |
≤0.25 |
≤0.40 |
≤0.10 |
0.05-0.20 |
4.50-5.50 |
≤0.10 |
0.06-0.20 |
0.05-0.20 |
≤0.0003 |
Balance |
|
Typical Results |
0.06 |
0.09 |
0.004 |
0.15 |
4.96 |
0.001 |
0.09 | 0.12 |
Balance |
|
Diameter(mm) |
Weight(kg) |
Packaging | Part number | Pallet load(kg) |
|
1.2 |
7 |
Spool | PALAW5356120S07W00 | 672 |
|
1.6 |
7 |
Spool | PALAW5356160S07W00 | 672 |
| 1.2 |
136 |
Gem-PakTM Drum | ALAW5356120P136W00 | 136 |
| 1.6 | 136 | Gem-PakTM Drum | ALAW5356160P136W00 | 136 |
|
Diameter(mm) |
Shielding Gas |
Gas Flow (L/min) | Polarity | CTWD(mm) | Wire Feed Speed(m/min) | Voltage V | Approx.Current A |
|
1.2 |
100%Ar |
14-24 | DC+ | 12.7-15.9 | 12.7 | 23.0 | 210 |
|
1.6 |
100%Ar |
14-24 | DC+ | 12.7-15.9 | 9.1 | 24.8 | 280 |
