● Shipbuilding, Container, Wind Tower, Vehicle, Steel Structure, Machinery Fabrication
ASME SFA-5.17 AWS A5.17: EH14
Literature
Literature

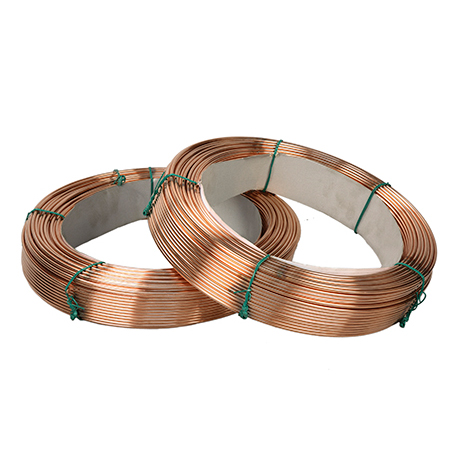

• Low carbon, high manganese, low silicon general purpose SAW wire
• Weld with PREMIERWELD® BF-1 basic flux
• Well suited for a wide range of single or multiple wire welding applications
|
Wire |
C |
Mn |
Si |
P |
S |
Cu |
|
Requirements – AWS EH14 |
0.10-0.20 |
1.70-2.20 |
≤0.10 |
≤0.030 |
≤0.030 |
≤0.35 |
|
PREMIERWELD® H14 |
0.15 |
2.04 |
0.03 |
0.016 |
0.01 |
0.07 |
|
Wire/Flux |
Condition |
Yield Strength MPa |
Tensile Strength MPa |
Elongation (%) |
CNV Impact (J) @ -40°C |
Classification |
|
PREMIERWELD® H14/ PREMIERWELD® BF-1 |
As-welded |
480 |
570 |
29 |
94 |
AWS:F7A4-EH14 |
2.4mm,3.2mm,4.0mm,4.8mm
25kg/Coil
* Please contact your local LINCOLN® customer service for other type of packages.
|
Diameter (mm) |
2.0 |
2.4 |
3.2 |
4.0 |
4.8 |
|
Current Range (A) |
300~400 |
350~450 |
425~525 |
475~575 |
525~625 |
|
Voltage (V) |
26~29 |
27~30 |
27~30 |
27~30 |
27~30 |
|
ESO (mm) |
13~19 |
19~32 |
25~38 |
25~38 |
25~38 |
|
Travel Speed (mm/s) |
5~6 |
5.5~6.5 |
6~7 |
6.5~7.5 |
6.5~7.5 |
