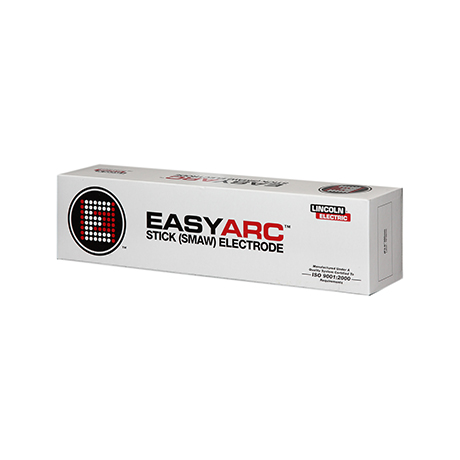

EASYARC® 7014 can be used for sheet metal lap joints and fillet welds, general purpose plate welding and maintenance jobs.
AWS A5.1/A5.1M: E7014
Literature
Literature
- All-position stick electrode
- High deposition rate
- Smooth bead appearance
- Easy slag removal
- Manufactured under a quality system certified to ISO 9001 requirements
|
|
C |
Mn |
Si |
S |
P |
Ni |
Cr |
Mo |
V |
|
AWS E7014 Requirement (%) Max. |
0.15 |
1.25 |
0.90 |
0.035 |
0.035 |
0.30 |
0.20 |
0.30 |
0.08 |
|
Typical Values (%) |
0.079 |
0.59 |
0.38 |
0.019 |
0.025 |
0.025 |
0.030 |
0.003 |
0.004 |
|
|
Yield Strength (MPa) |
Tensile Strength (MPa) |
Elongation (%) |
Impact ISO -V, J |
|
AWS E7014 Requirement |
min. 400 |
min. 490 |
min. 17 |
--- |
|
Typical Values |
440 |
520 |
22 |
74 @ 0°C |
|
Dia. x Length (mm x mm) |
Weight /Packet (KG) |
Weight / Carton (KG) |
Packets per Carton |
Pallet Weight (kg) |
Product No. |
|
2.5*300 |
5 |
20 |
4 |
1200 |
CC010253 |
|
3.2*350 |
5 |
20 |
4 |
1200 |
CC010254 |
|
4.0*400 |
5 |
20 |
4 |
1200 |
CC010255 |
|
5.0*400 |
5 |
20 |
4 |
1200 |
CC010256 |
|
|
|
2.6*300 |
3.2*350 |
4.0*400 |
5.0*400 |
|
Current (A) |
AC |
80-100 |
110-160 |
150-225 |
200-280 |
|
DC+ |
75-95 |
100-145 |
135-200 |
185-235 |
|
|
DC- |
75-95 |
100-145 |
135-200 |
185-235 |
