● Thin plate single pass
●Applications without clean base material
●High speed welding, particularly those applications that require a very nice bead appearance
ASME SFA -5.17
AWS A5.17:F7AZ-EL8,F7AZ-EM12K
ASME SFA-5.17M
AWS A5.17M F49A0-EL8,F48A0-EM12K
Literature
Literature
● Thin plate single pass
● Applications without clean base material
●High speed welding, particularly those applications that require a very nice bead appearance
FLUX COMPOSITION TYPICAL
|
AI2O3+SiO2 |
MgO |
MnO |
CaF2 |
P |
S |
|
52.6 % |
16.5 % |
13.9 % |
6.3 % |
0.02 % |
0.03 % |
ALL-WELD-METAL CHEMICAL COMPOSITIONS (Wt%) TYPICAL
|
Flux/Wire |
C |
Mn |
Si |
P |
S |
|
PREMIERWELD® AF-5/ PREMIERWELD® L8 |
0.07 |
1.12 |
0.52 |
0.022 |
0.016 |
|
PREMIERWELD®AF-5/ PREMIERWELD® M12K |
0.06 |
1.41 |
0.56 |
0.022 |
0.015 |
|
Flux/Wire |
Condition |
Yield Strength MPa |
Tensile Strength MPa |
Elongation (%) |
CVN-Toughness J @ 0。C |
|
PREMIERWELD® AF-5/ PREMIERWELD® L8 |
As-Welded |
440 |
530 |
31 |
50 |
|
PREMIERWELD® AF-5/ PREMIERWELD® M12K |
480 |
575 |
30 |
86 |

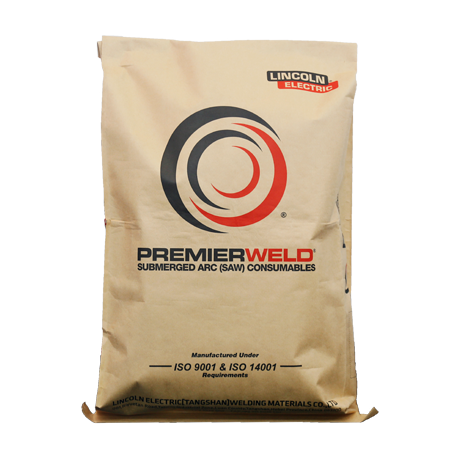

25kg/Bag
* Please contact your local LINCOLN customer service for other type of packages.
|
Diameter (mm) |
2.0 |
2.4 |
3.2 |
4.0 |
4.8 |
|
Current Range (A) |
300~400 |
350~450 |
425~525 |
475~575 |
525~625 |
|
Voltage (V) |
26~29 |
27~30 |
27~30 |
27~30 |
27~30 |
|
ESO (mm) |
13~19 |
19~32 |
25~38 |
25~38 |
25~38 |
|
Travel Speed (mm/s) |
5~6 |
5.5~6.5 |
6~7 |
6.5~7.5 |
6.5~7.5 |
