Application include those in general fabrication,ship or barge construction,building or bridge erection,and off-shore industries
-
AWS A5.20/ASME SFA-5.20:E71T-1C/9C
-
AWS A5.36 E71T1-C1A2-CS1-H8
Literature
Literature
-
Excellent crack resistance and low diffusible hydrogen
-
Slag system provides for puddle support, good wetting, and consistant bead shape in all positions
-
Arc action and metal transfer are smooth
-
Slag removed is easily achieved with hand tools
-
One sided welding is possible with ceramic backing
-
Manufactured under a quality system certified to ISO 9001 requirements
|

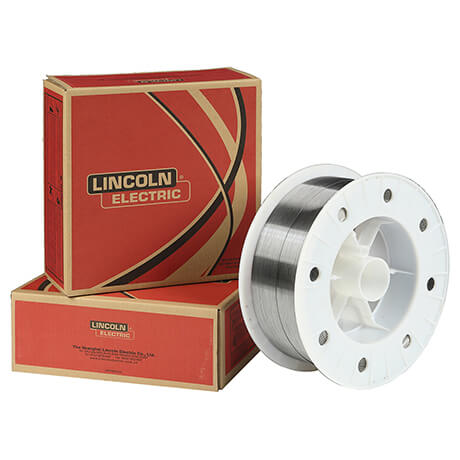

PRIMACORE® LW-71H |
C% |
Mn% |
Si% |
S% |
P% |
|
Requirements AWS E71T-1C/9CMax |
0.12 |
1.75 |
0.90 |
0.03 |
0.03 |
|
Test results 100%CO2 |
0.06 |
1.30 |
0.38 |
0.01 |
0.02 |
|
PRIMACORE® LW-71H |
Yield Strength MPa |
Tensile Strength MPa |
Elongation % |
CVN Impact |
|
|
@-20℃ |
@-30℃ |
||||
|
Requirements AWS E71T-1C AWS E71T-9C |
Min390 |
490-670 |
Min22 |
Min27 |
Min27 |
|
Test Results As Welded 100%CO2 |
490 |
570 |
24.5 |
112 |
98 |
|
Diameter(mm) |
Spool/Drum Weight(kg) |
Pallet Weight(kg) |
|
1.2 1.4 1.2 1.4 |
15 15 4.5 4.5 |
1080 1080 1080 1080 |
|
Diameter Polarity CTWD mm(inches) |
Wire Feed Speed in/min(cm/min) |
Voltage(V) |
Approx.Current(A) |
Melt-Off Rate(kg/hr) |
Deposition Rate (Kg/hr) |
|
1.2mm DC+ 20mm(3/4in) |
175(445) 225(572) 275(699) 325(826) 375(953) 425(1080) 475(1207) 600(1524) |
21-24 23-25 25-27 26-29 27-29 28-30 29-31 31-33 |
130 165 185 200 230 250 270 310 |
1.8 2.4 2.9 3.4 4.0 4.5 5.0 6.2 |
1.5 1.9 2.4 2.9 3.3 3.7 4.2 5.3 |
|
1.6mm DC+ 25mm(63/64) |
150(381) 200(508) 250(635) 300(762) 350(889) 400(1016) 450(1143) |
23-25 24-26 25-27 26-28 27-29 28-30 29-31 |
150 190 225 240 275 300 325 |
2.0 2.6 3.3 4.0 4.6 5.3 6.0 |
1.7 2.2 2.8 3.6 3.7 4.5 5.1 |
