● Pipemill
● Windtower
ASME SFA-5.17 AWS A5.17 F7A4-EH14
ISO 14174-S A AB 1
Literature
Literature
● Aluminate-Basic type neutral agglomerated flux
● Basicity Index: 1.62, Grain Size: 10~40 mesh
● Capable of produce good mechanical property welds in multiple groove welding
● Longitudinal and spiral pipe mill welding with EH14 wire
● Two run welding with JW®-9 (Mo-Ti-B) wire on windtower fabrication
Chemical Composition (Wt%) -Typical
|
SiO2 |
AI2O3 |
Na2O |
MgO |
MnO |
CaF2 |
P |
S |
|
22.50 |
20.98 |
2.02 |
25.17 |
4.40 |
21.83 |
0.028 |
0.020 |
All-Weld-Metal Chemical Composition (Wt%)-Typical
|
Flux/Wire |
C |
Mn |
Si |
P |
S |
Cu |
|
SJ-101G/ PREMIERWELD® H14 |
0.079 |
1.58 |
0.33 |
0.022 |
0.009 |
0.04 |
|
Flux/Wire |
Condition |
Yield Strength MPa |
Tensile Strength MPa |
Elongation (%) |
Charpy V-Notch J |
Charpy V-Notch °C |
Classification |
|
SJ-101G/ PREMIERWELD® H14 |
As-welded |
480 |
585 |
28 |
90 |
-40 |
AWS:F7A4-EH14 |

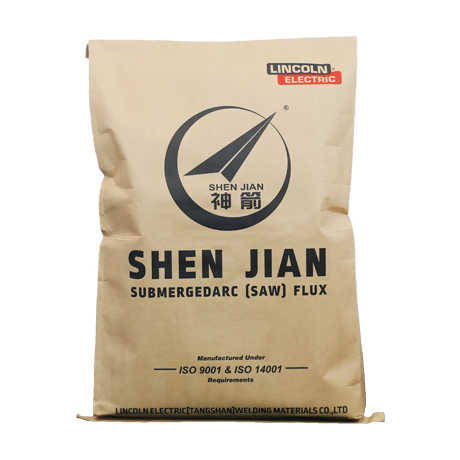

25kg/Bag
* Please contact your local LINCOLN customer service for other type of packages.
|
Diameter (mm) |
2.0 |
2.4 |
3.2 |
4.0 |
4.8 |
|
Current Range (A) |
300~400 |
350~450 |
425~525 |
475~575 |
525~625 |
|
Voltage (V) |
26~29 |
27~30 |
27~30 |
27~30 |
27~30 |
|
ESO (mm) |
13~19 |
19~32 |
25~38 |
25~38 |
25~38 |
|
Travel Speed (mm/s) |
5~6 |
5.5~6.5 |
6~7 |
6.5~7.5 |
6.5~7.5 |
